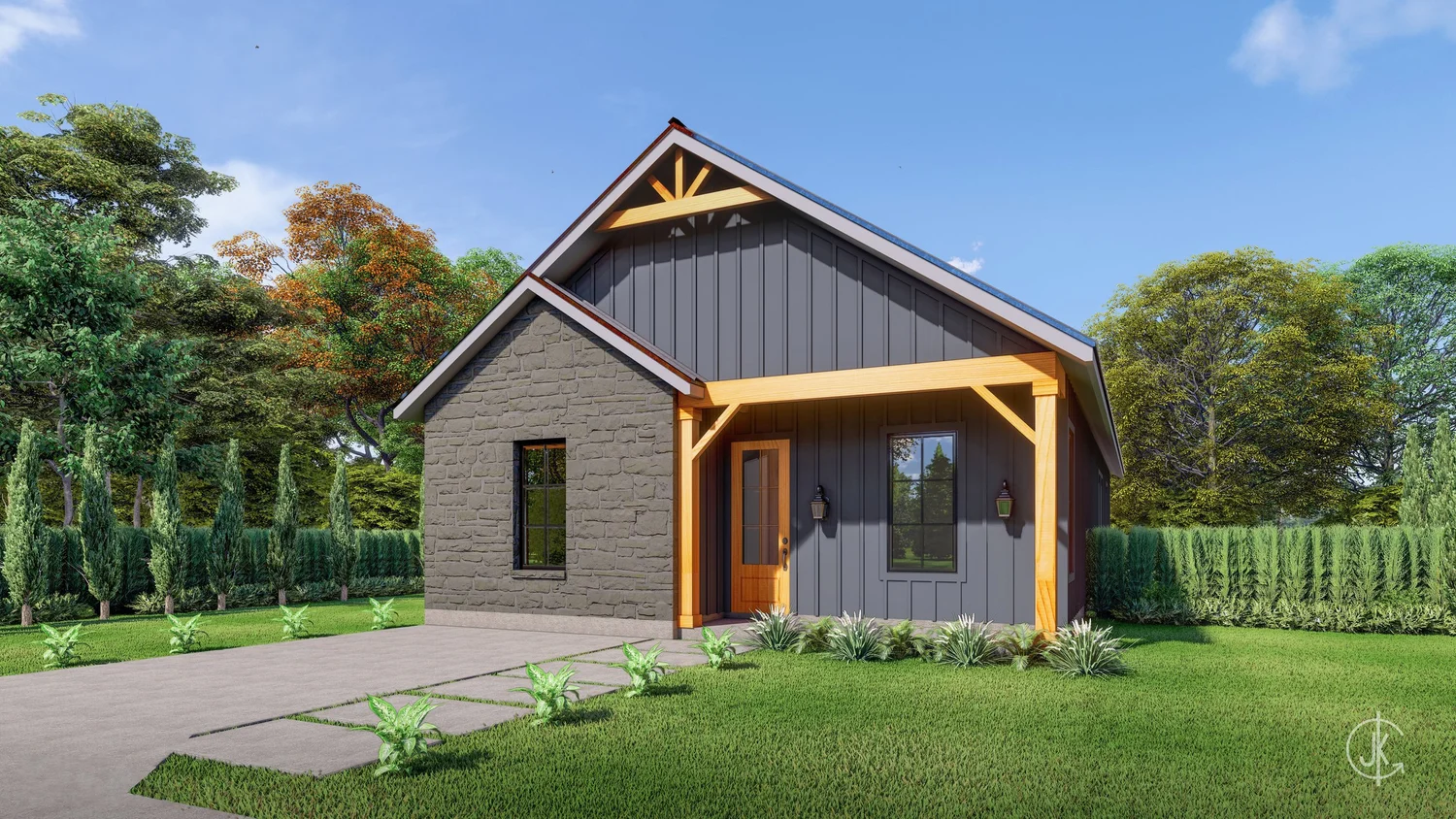

1400 SF. Plan
What’s Included?
All plans are drawn at a 1/8” scale or larger and include:

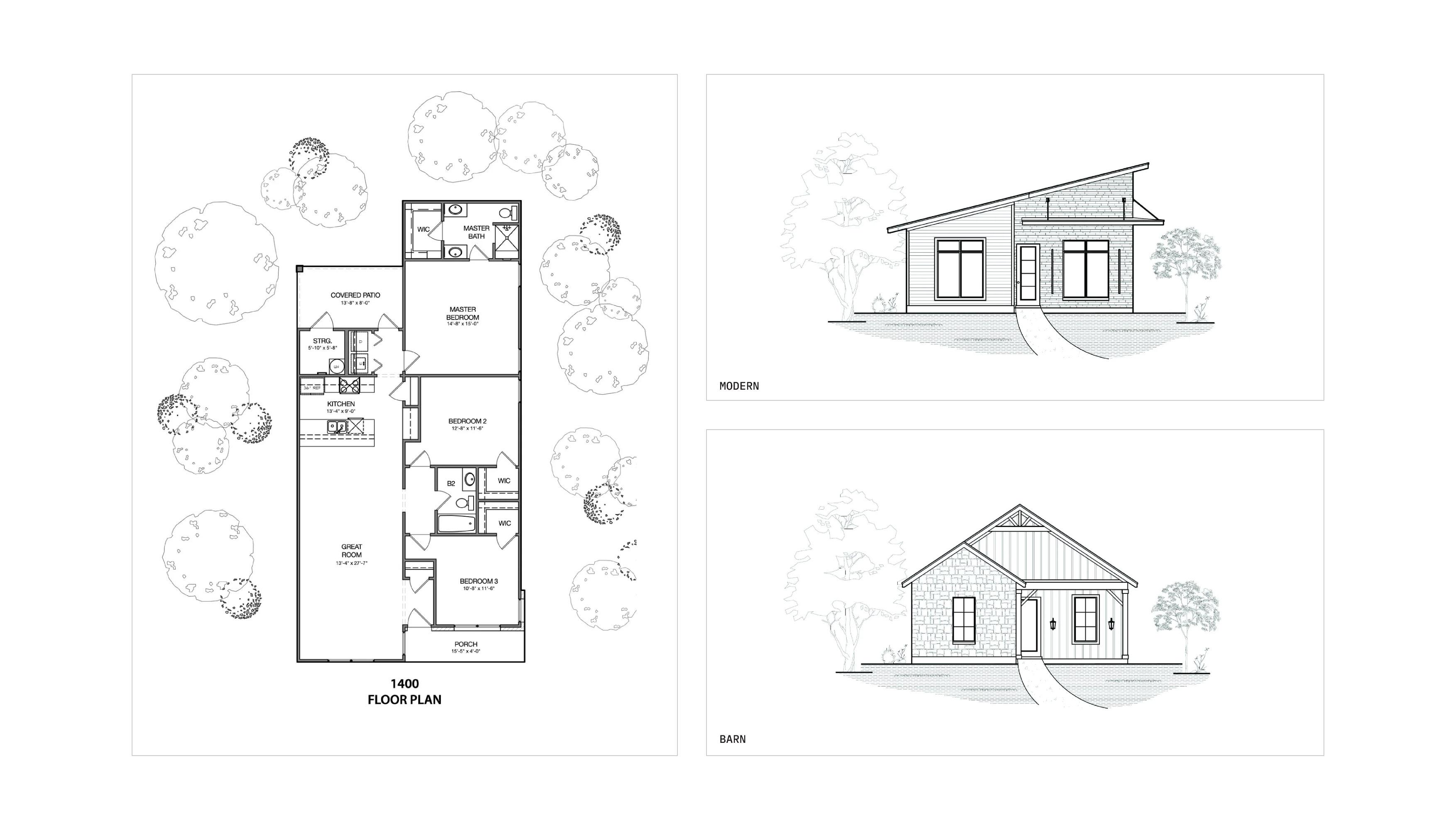

- Dimensioned floor plan, detailed, drawn at a 1/8” scale for each level.
- Exterior elevations, complete with call outs all exterior building material, pitches of roofs, heights and details.
- Interior elevations, with all sizes of cabinetry, sink locations, mirror, and toilet locations.
1st Floor A/C Area: 1,400 sf.
Porch: 68 sf.
Covered Patio/Storage: 149 sf.
Total Framed Area: 1,617 sf.
Total Conc. Slab Area: 1,621 sf.
Square footages are approximate and should be checked by owner and builder accordingly
Depth: 59’-9”
Width: 29’-5 ½”
Primary Ceiling: 10’ clg.
Main areas: Sloped clg.
Water Heater: 50 gal.
Water Softener: Pre-plumb for W/S Loop
Primary Pitch: 3:12
Framing: Walls 2x4 unless otherwise noted.
In attic.
All plans can be modified. For more information contact us before proceeding with any work or ordering materials, the contractor and/or sub-contractor shall report any discrepancies in or omissions from the working drawings. All of the design concepts, working drawings and detailed plans contained herein remain the sole and exclusive property of JKG Designs LLC, who expressly reserves and retains the right to duplicate construction of these plans in whole or in part to its sole discretion. It is the responsibility of the general contractor to insure that the construction of this project meets all local structural codes.
