2000 Modern Project

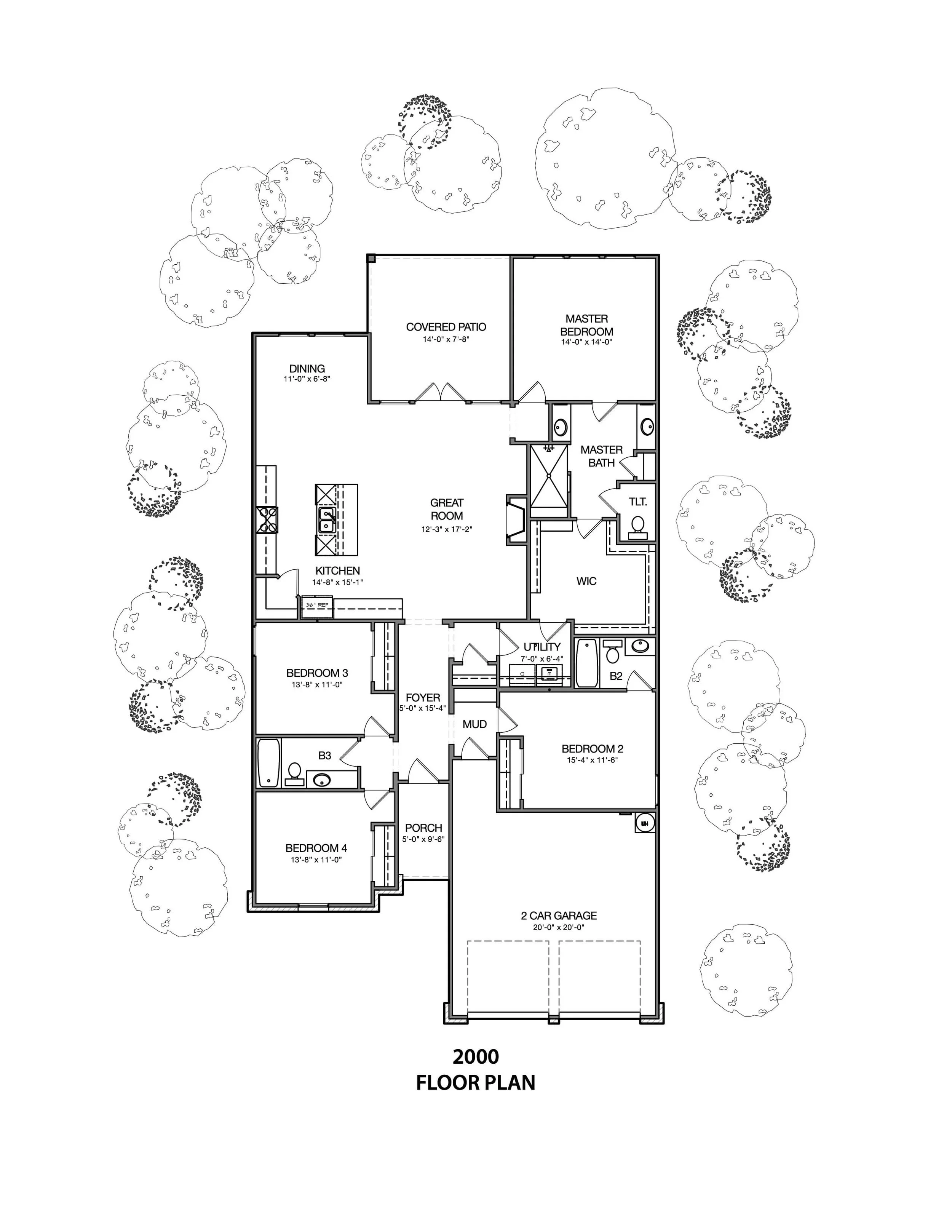

This efficient home provides an effective layout that makes the best use of its space. Entering through your front door, you enter into a grand foyer that leads into your great room. The great room, kitchen, and dining room make for a wonderful entertainment space, all operating as a cohesive gathering area. This design features a private master suite pulled away from the three secondary bedrooms.
-
Depth: 75’-7 ½”
Width: 40’-11”
-
1st Floor A/C Area: 2,000 sf.
Porch: 48 sf.
Covered Patio/Storage: 198 sf.
2-Car Garage 444 sf.
Total Framed Area: 2,690 sf.
Total Conc. Slab Area: 2,703 sf.
-
Primary Ceiling: 10’ clg.
Main areas: 10’ clg.
-
Primary Pitch: 3:12
Framing: Walls 2×4 unless otherwise noted.
-
Water Heater: 50 gal.
Water Softener: Pre-plumb for W/S Loop
-
In attic.
WHAT’S INCLUDED IN THIS PLAN SET
All plans are drawn at a 1/8” scale or larger and include:
Dimensioned floor plan, detailed, drawn at a 1/8” scale for each level.
Exterior elevations, complete with call outs all exterior building material, pitches of roofs, heights and details.
Interior elevations, with all sizes of cabinetry, sink locations, mirror, and toilet locations.
